The Antonín Dvořák Theatre

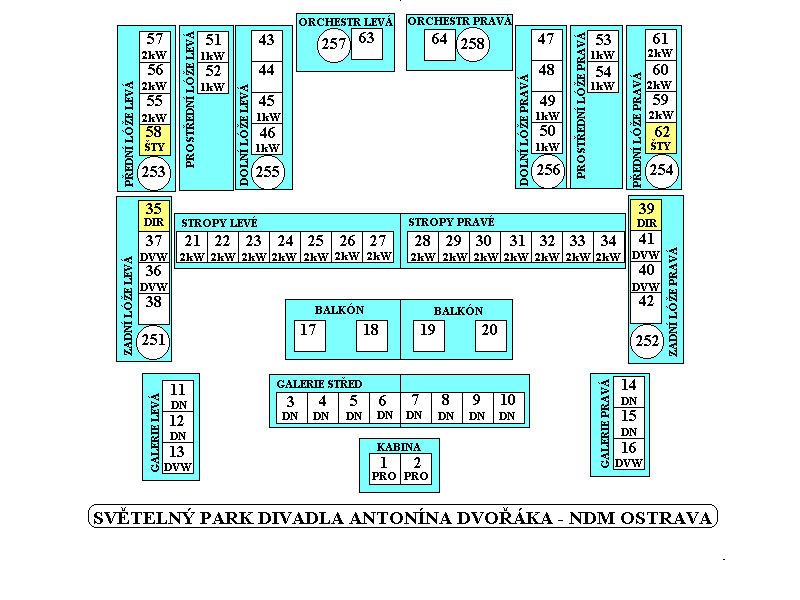

Here you can download the synoptic map 1 (.bmp, 1.5MB), synoptic map 2 (.bmp, 1.5MB).

Stand for light direction: ADB Phoenix 5

Legend to synoptic map:
Numbers in circles – unregulated sockets 10A
Numbers in squares – regulated sockets 16A

Abbreviations and types of reflectors:
1 KW – ADB C 103
2 KW – ADB C 203
DVW – ADB DVW 205
DN- ADB DN 205
PRO – projector Pani
DIR – ADB DSN 105
FHR – FHR 1000
NV – DPR 500
SNV - Svoboda NV platforms

Overall number of regulated circuits: 209

2 KW circuits:
17 – 20, 43 – 54, 63 – 71, 73 – 79, 81 – 84, 86 – 95, 97 – 156, 162, 164, 166, 169, 171, 173, 176, 178, 180, 182 – 203, 208, 209

5 KW circuits:
1 – 16, 21 - 42, 55 – 62, 72, 80, 85, 96, 157 – 161, 163, 165, 167, 168, 170, 172, 174, 175, 177, 179, 181, 204 – 207

DMX ends in the dimmer room in the 2nd floor, there is a possibility to pull it to lower right stage gangplank.
